Iron Sleek 800 Sq/Ft Chiller - Indoor, Outdoor Usage, & Specs

  • Outdoor Usage: Ambient 50° 800Sq/Ft
  • Indoor Usage: Ambient Under 80°F - Ice 650 Sq/Ft
  • Can Freeze up to 800 Square Feet with the ambient at 40-50 during the fall, winter, and early spring.
  • Qty 1 Chiller 5 ton/6 hp compressor each. Total 5 Ton 6Hp Compressing.
  • 1.5HP SS Process Pump 40GPM @ 34PSI (without tank) - 1MS

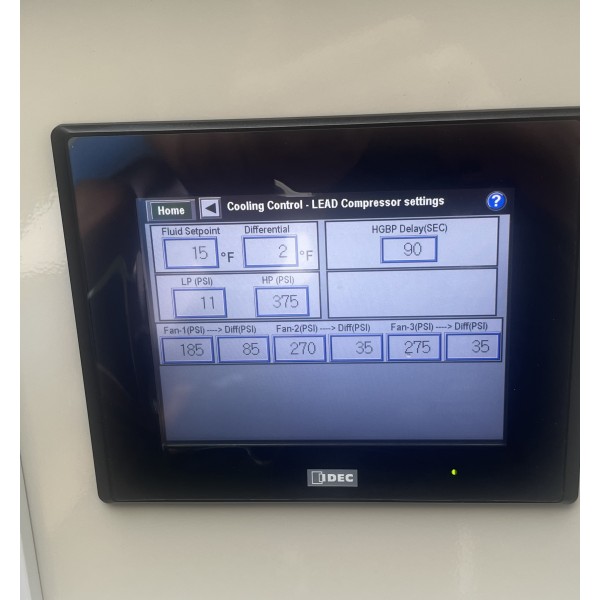

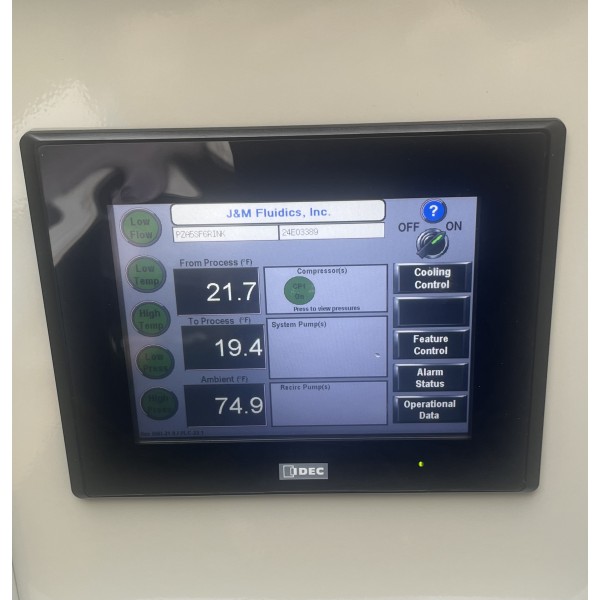

  • Touch Screen Control
  • Available in Single Phase
  • Separate Pump Control
  • Glycol Evaporator Upgrade - 500321, 8 PSI drop
  • Stainless Steel, brazed plate evaporator
  • Suction Accumulator
  • Water Flow Switch
  • 24V Control Transformer
  • Single Point Power Connection
  • Painted (Powder Coated), Galvanized Sheet Metal Cabinet
  • Strong and Durable
  • Chiller Only

This chiller will freeze anything up to 800 square feet. The product is Chiller only. This chiller has a 5 Ton and 5 Horsepower compressor. Iron Sleek Chillers are designed to meet the demanding requirements of modern industrial processes. It features a compact design, making it easy to integrate into existing systems and processes, and it's highly efficient cooling system ensures rapid heat removal. The Chiller is also equipped with an advanced control system, ensuring consistent performance and accurate temperature control.

HOW DOES A CHILLER WORK AND WHAT DOES IT DO?

The Chiller is where the Brine returns with heat from the ice rink surface to the absorbed by the much colder liquid refrigerant (ammonia). The ammonia will then boil and vaporize as it absorbs the brines heat. The cooled brine that re-circles to the rink. However, the brine water's chemical properties keep it from freezing. To freeze the rink surface, the system pumps chilled brine water through the pipes and then onto the ice-bearing concrete slab.

HOW DOES A CHILLER WORK AND WHAT DOES IT DO?

The Chiller is where the Brine returns with heat from the ice rink surface to the absorbed by the much colder liquid refrigerant (ammonia). The ammonia will then boil and vaporize as it absorbs the brines heat. The cooled brine that re-circles to the rink. However, the brine water's chemical properties keep it from freezing. To freeze the rink surface, the system pumps chilled brine water through the pipes and then onto the ice-bearing concrete slab.

WHY IRON SLEEK IS THE BEST FOR YOU!

At Iron Sleek we are all about family. We have fun with our family and we want you to have fun too. We full-heartedly believe that an Outdoor Rink is one of the best and most fun things a family can have. It will be a tradition and something that can bring family and friends together. Be the fun house of the neighborhood and invest in an Outdoor Refrigerated Ice Rink now!

MATS AND REFRIGERATION ALSO AVAILABLE ON WEBSITE !!

Chiller, Mats, and Refrigeration are also available and sold separately on our website Give us a call at 877-825-2334 with any questions or clarifications.

Write a review

Note: HTML is not translated!
    Bad           Good
800 Square Foot Chiller
  • Product Code: Chiller Only 1400 Square Foot
  • Availability: In Stock
  • $14,350.00


Available Options


Tags: chiller, single phase chiller, 3 phase chiller, refrigeration chiller, rink chiller
